Product Introduction

In order to improve the valuation process and order fulfillment, below we present a specific scope of data that a complete order should contain:

•
• - The arrangement of meshes (stagger, straight, or otherwise) as well as the distance between the eyelets 
  - Margins (area without perforation), optionally mark their absence

  It would also be helpful if you could specify your needs precisely about the purpose of specific products and specify the expected goods delivery time. Please also pay attention to some key parameters and dependencies that have a significant impact on the final price of the product.

  - Type and thickness of the raw material - The cheapest material is steel sheet, however, using more durable materials, you can reduce the thickness to obtain similar strength. It should also be remembered that the thinner material perforates faster.

  - The size of the holes - the diameter of the hole should not be smaller than the thickness of the material, and preferably if the mesh has a diameter about twice as large as the thickness of the sheet.
  Perforated sheets made in accordance with the standards are cheaper and faster in perforation

  - The clearance should not exceed 65% so as not to cause distortion.

Product Categories

Perforated mesh is also widely used in

- Chemical machinery,
- Pharmaceutical equipment,
- Food and beverage machinery,
- Cigarette machinery, harvesters,
- Dry cleaning machine, ironing table,
- Silencer equipment,
- Refrigeration equipment (central air conditioning)
- Craft making,
- Papermaking,
- Hydraulic accessories,
- Filtration equipment and other industries.

1. 01.Technical parameters

   Material: ordinary steel, abrasion-resistant, heat-resistant, stainless, acid-resistant, aluminum, copper, brass, bronze, plastics, rubbers.

   Format: 
   thickness up to 18 mm, width up to 2.000 mm, length up to 6,000 mm. For some assortments, it is possible to perforate the coils in the coils (coil width Format: up to 1600 mm). 
   Para tipos individuales de perforaciones, pueden existir restricciones en el grosor y ancho de la hoja y la necesidad de dejar márgenes tecnológicos sin perforar.

   Standard operations: 
   Alisado simple, corte a medida y embalaje en pallets.

   Additional operations: 
   bending, rolling, pressing, trapezoidal, framing, welding, welding, powder coating, wiping/cleaning with oil, etc.

2. 02.The structure of the hole

   El agujero en la chapa consta de tres partes, creadas durante el proceso de producción:

   La estructura del agujero.
   1. Zone of dents
   2. Cutting zone
   3. Extraction area

   03. Product description
   Las hojas típicas se producen con márgenes transversales y longitudinales sin perforar.

   También existe la posibilidad de perforar según planos del cliente y chapas con campo de perforación completo, previa consulta. Como estándar, todas las láminas se enderezan después de la perforación; además, ofrecemos servicios de procesamiento posterior del producto, lo que permite a los clientes comprar componentes ya preparados.

Product Parameters

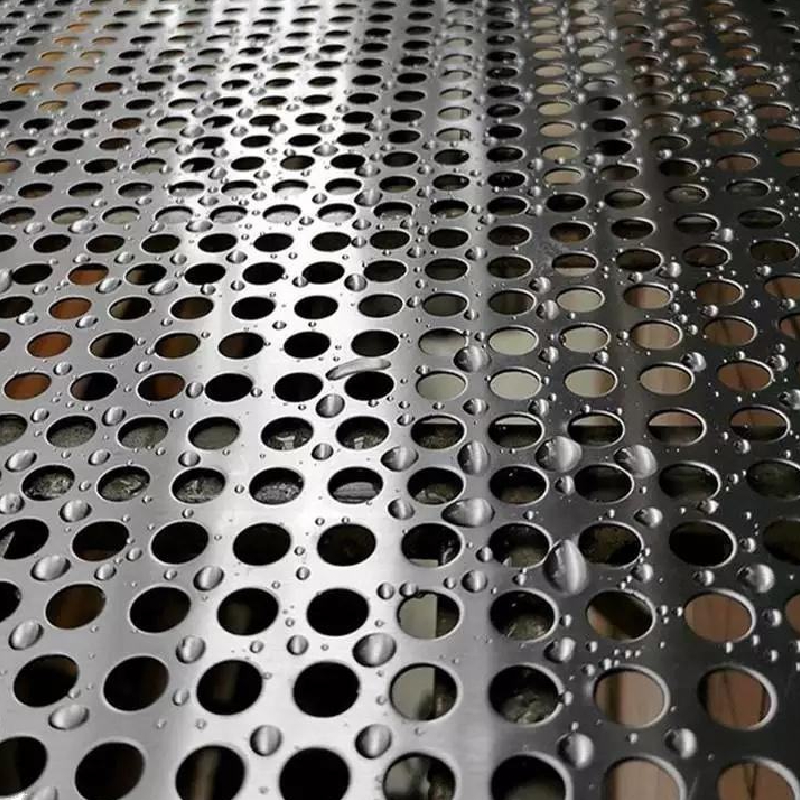

Detailed Photos
