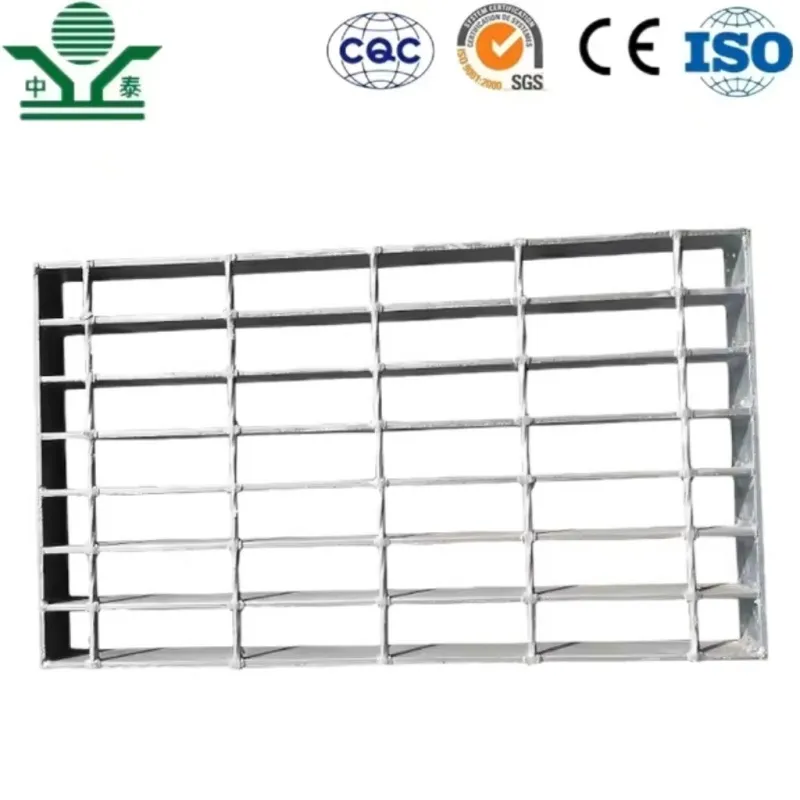

Zhongtai Heavy Duty Iron Tree Grates Press-Locked Steel Grating for Driveway

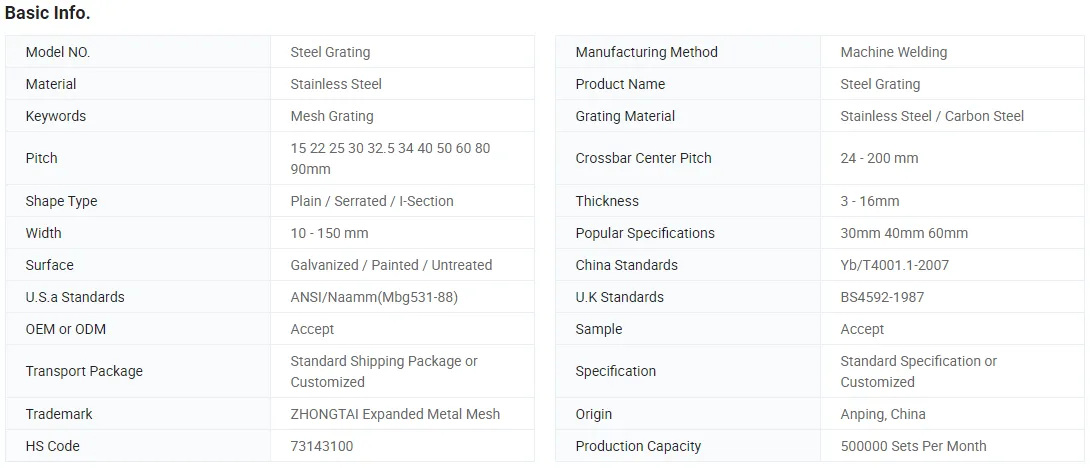

Material: Stainless Steel / Carbon Steel. Bearing Bar Pitch:15 22 25 30 32.5 34 40 50 60 80 90mm. Cross Bar Center Pitch: 24 - 200 mm. Shape Type: Plain / Serrated / I-Section. Thickness: 3-16mm. Width: 10-150mm. Surface: Galvanized / Painted / Untreated.

आम्हाला ईमेल पाठवा PDF मध्ये डाउनलोड करा

उत्पादन तपशील

उत्पादन टॅग

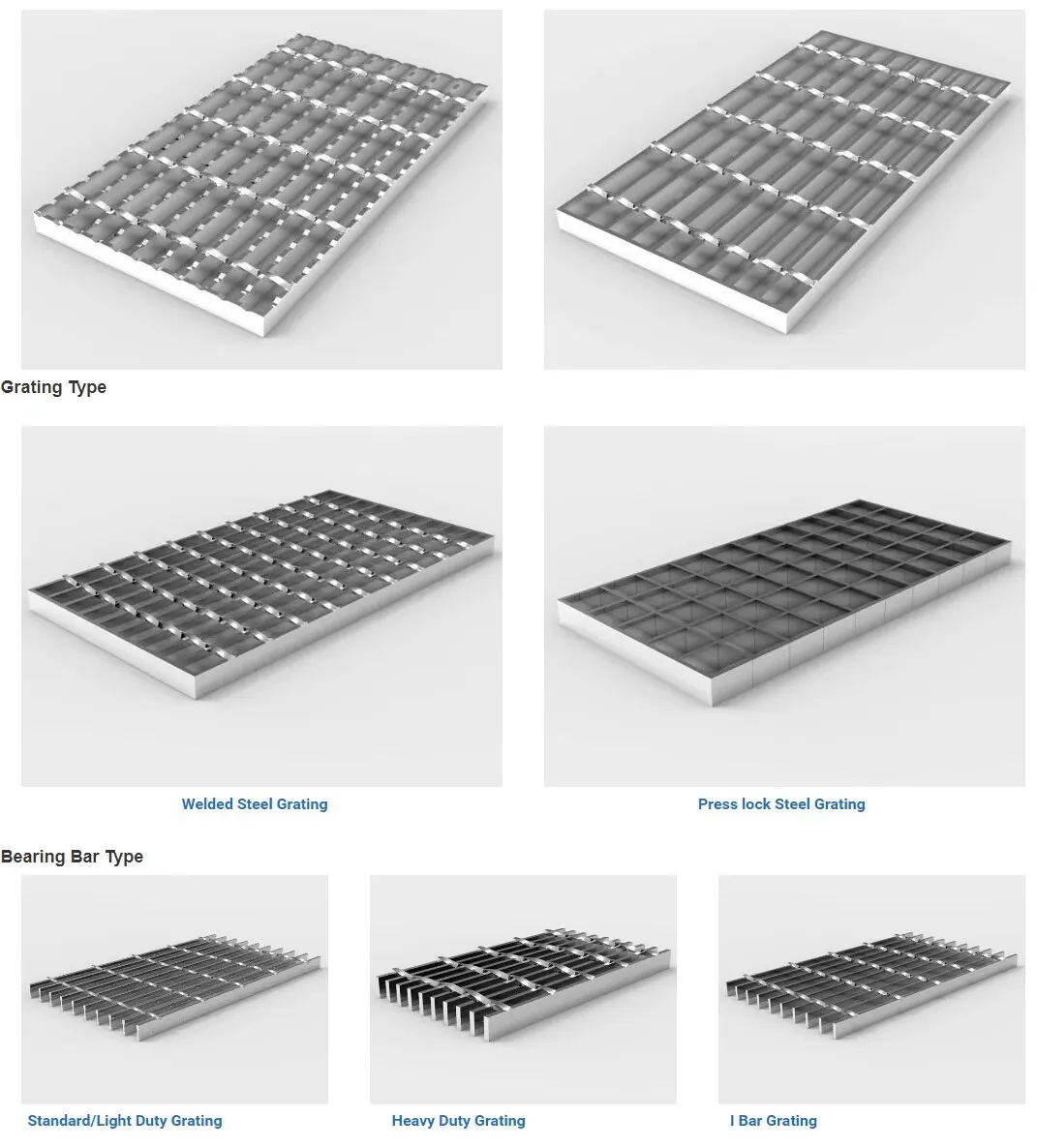

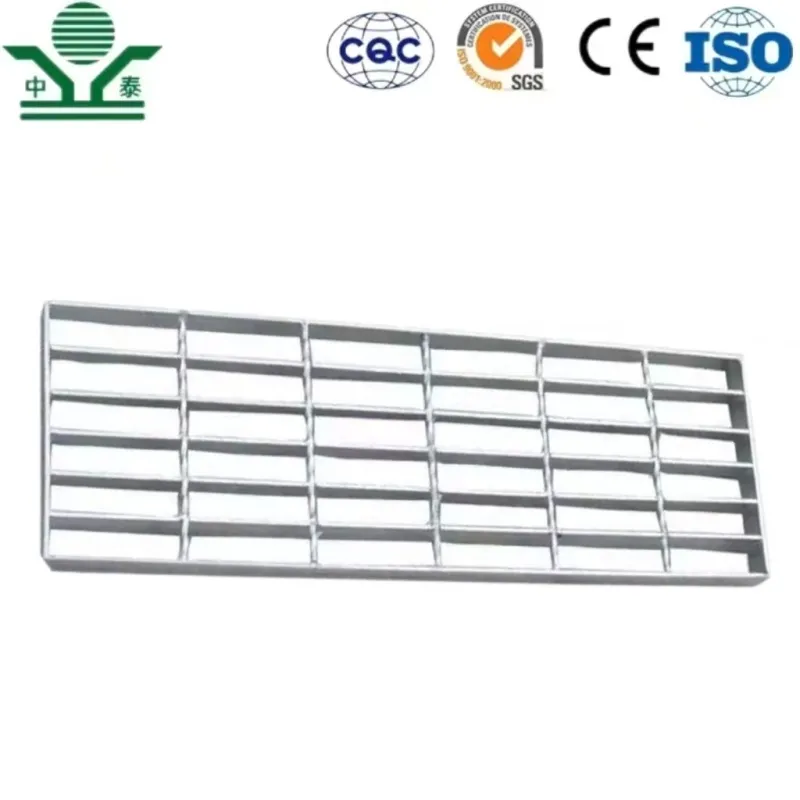

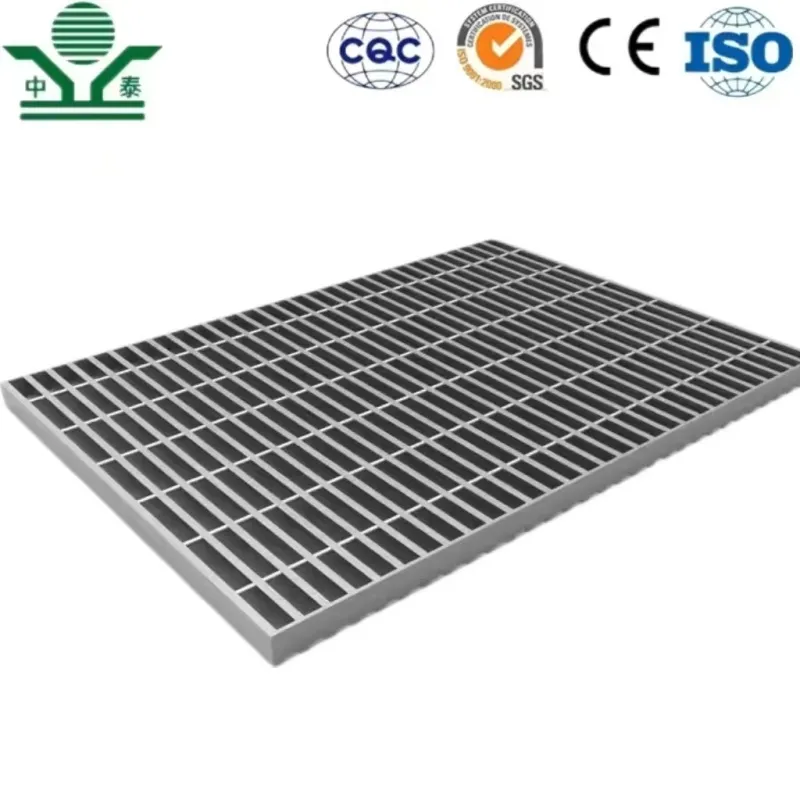

Zhongtai Heavy Duty Iron Tree Grates Press-Locked Steel Grating for Driveway

Product Introduction

THE POPULAR SPECIFICATIONS OF STEEL GRATING

The grating with a pitch of 30mm between bearing bars is the most widely used type in the industrial field. Among normal types, it has the strongest resistance to surface lash.

The grating with a pitch of 40mm between bearing bars is the most economical and lightest type. lt is the best choice for you on occasions when the span is small.

The grating with a pitch of 60mm between the bearing bars and a pitch of 50mm between the cross bars is developed especially for the mining industry, it solved the problem of a mineral splash on the plate. So it is often appointed for use in processing works of the mining industry.

The grating with a pitch of 30mm between bearing bars and of76mm between cross bars is the most popular type used at home and abroad, it is proper for many applications such as walkways, platforms, etc.

स्टेनलेस स्टील ग्रेटिंग - गंजणाऱ्या प्रकल्पांसाठी 304 आणि 316 साहित्य

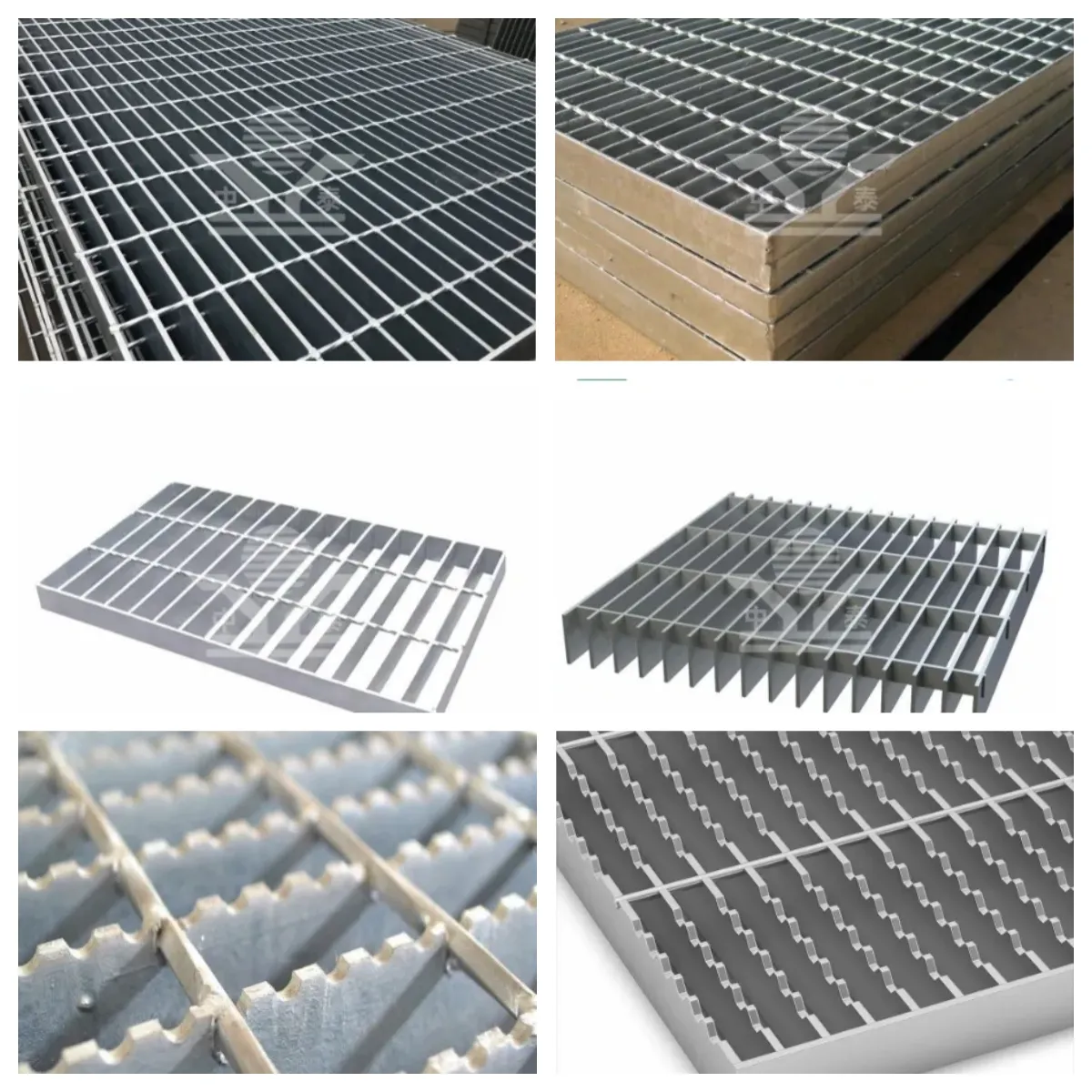

Stainless steel grating is regarded as industrial-grade bar grating, which is extremely strong, durable, and corrosive resistant for all load-bearing applications and is primarily used for pedestrian and light vehicle traffic.

- Both in Smooth or serrated surface.
- निवडीसाठी 304 किंवा 316 ग्रेड.
- बेअरिंग बार आकार आणि खेळपट्टीची विस्तृत श्रेणी.
- मोठ्या ऑर्डरसाठी विशेष सवलत.
- तुमच्या बोलीसाठी प्रकल्प संदर्भ पुरवले जाऊ शकतात.
- ISO प्रमाणित कारखाना.
- तुमच्या डिझाइन आणि बांधकामासाठी CAD किंवा 3D रेखाचित्रे पुरवली जाऊ शकतात.

Dimensions

Type	Description	Tensile Strength	Yield
304	Good corrosion resistance, high tensile strength, excellent for chemical processing, food industries, power plants, and wastewater treatment. Used in high-temperature applications	75,000 psi (min.)	30,000 psi (min.)
316	Better corrosion and pitting resistance than type 304, and good heat resistance, used in chemical, pulp, and paper processing, marine environments, textile equipment, and petroleum refining.	75,000 psi (min.)	30,000 psi (min.)

Metric Legend	Imperial Legend
U = Safe Uniform Load (kPa) C = Safe Concentrated Load (kN/meter of grating width) D = Deflection (mm)	U = Safe Uniform Load (lbs./ft²) C = Safe Concentrated Load (lbs./foot of grating width) D = Deflection (inches)

Stainless Steel Grade	Load/Deflection	Multiply Carbon Steel Load Tables By:	Based on Maximum Allowable Fiber Stress
304Stainless Steel	U	1.111	20,000 P.S.I. (137.9 MPa)
C	1.111
D	1.151
304LStainless Steel	U	0.917	16,500 P.S.I. (113.8 MPa)
C	0.917
D	0.949
316Stainless Steel	U	1.111	20,000 P.S.I. (137.9 MPa)
C	1.111
D	1.151
316LStainless Steel	U	0.917	16,500 P.S.I. (113.8 MPa)
C	0.917
D	0.949

QUALITY STANDARD

STEEL GRATING STANDARDS:
CHINA: YB/T4001. 1-2007
U.S.A: ANSI / NAAMM(MBG531-88)
U.K: BS4592-1987

STEEL PRODUCT STANDARD:
CHINA : GB700-88
U.S.A: ASTM(A36)
U.K : BS4360(43A)

HOT GALVANIZING STANDARD:
CHINA : GB / T13912
U.S.A: ASTM(A123)
U.K : BS729

SYMBOL OF STEEL GRATING
G 325 /30 /100 F G

G: Sign of steel grating
325: Size of bearing bar ( width x thickness )
30: Bearing bar pitch
100: Cross bar pitch
F: Sign of the shape of bearing bars
G: Sign of surface treatment

NOTE

1, Bearing bar pitches may be 15,22,25,30,32.5,34,40,50,60,80,90mm, of which 25,30,34 and 40mm are recommended.

2, Cross bar pitches
maybe 24-200mmof which 50mm,76mm, and 100mm are recommended

3, Sign of the shape of bearing bars: FPlain style(may be committed in the symbol of steel grating)S-Serrated style-I-section style

4. Sign of surface-treatment;G-Hot dipped galvanized(may be omitted in the symbol of steel grating)PPaintedU-Untreated.

Applications

It can provide durable grating solutions for corrosive resistance and minimum carbide precipitation are important considerations, typical applications include stairs and platforms for chemical production and storage, food processing, and water and wastewater treatment plant.
