Zhongtai Customized Walkway Hot DIP Galvanized Outdoor Metal Steel Grate for Building

Material: Stainless Steel / Carbon Steel. Bearing Bar Pitch:15 22 25 30 32.5 34 40 50 60 80 90mm. Cross Bar Center Pitch: 24 - 200 mm. Shape Type: Plain / Serrated / I-Section. Thickness: 3-16mm. Width: 10-150mm. Surface: Galvanized / Painted / Untreated.

आम्हाला ईमेल पाठवा PDF मध्ये डाउनलोड करा

उत्पादन तपशील

उत्पादन टॅग

Zhongtai Customized Walkway Hot DIP Galvanized Outdoor Metal Steel Grate for Building

Product Recommendation:

1. The grating with a pitch of 30mm between bearing bars is the most used type in the industrial field. Among normal types, it has the strongest resistance to surface lash.

2. The grating with a pitch of 40mm between bearing bars is the most economical and lightest type. It is the best choice for you on occasions when the span is small.

3. The grating with a pitch of 60mm between bearing bars and a pitch of 50mm between the cross bars is developed specially for mining industry, it solved the problem of mineral splash on the plate. So it is often appointed to use in processing works of mining industry.

4. The grating with the pitch of 30mm between bearing bars and the pitch of 76mm between cross bars is the most popular type used at home and abroad, it is proper for many applications such as walkways, platforms, etc.

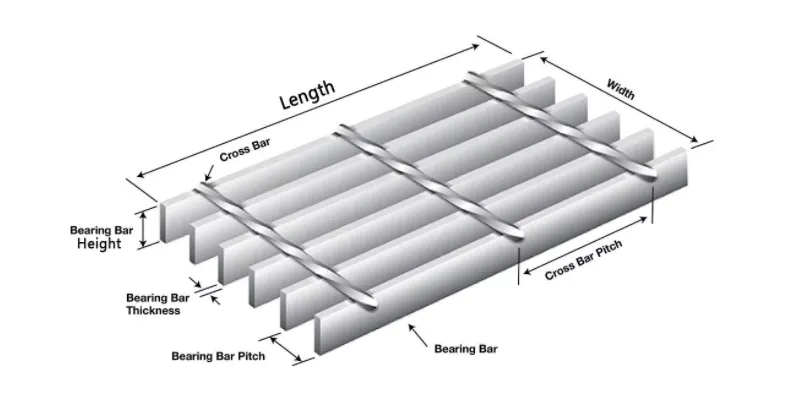

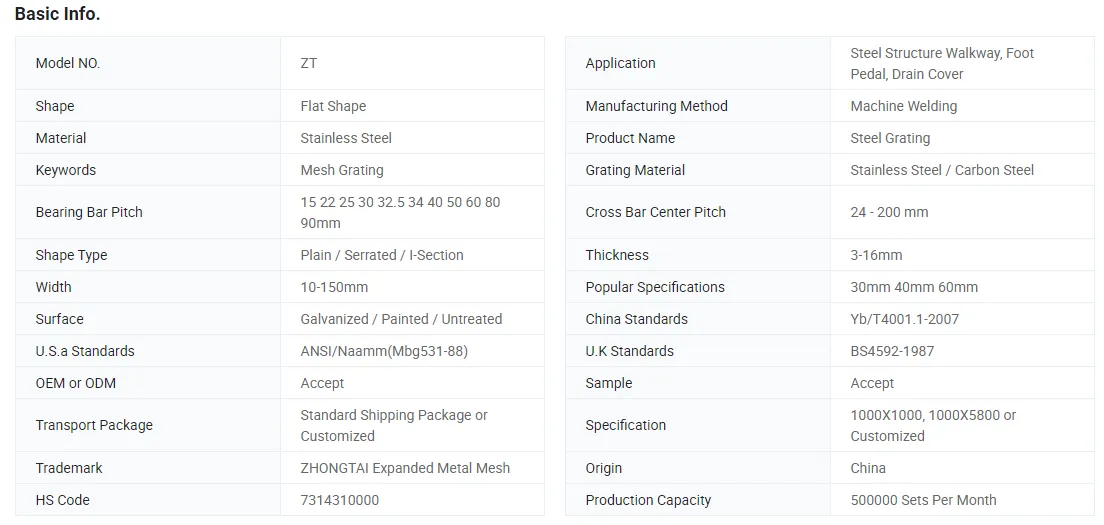

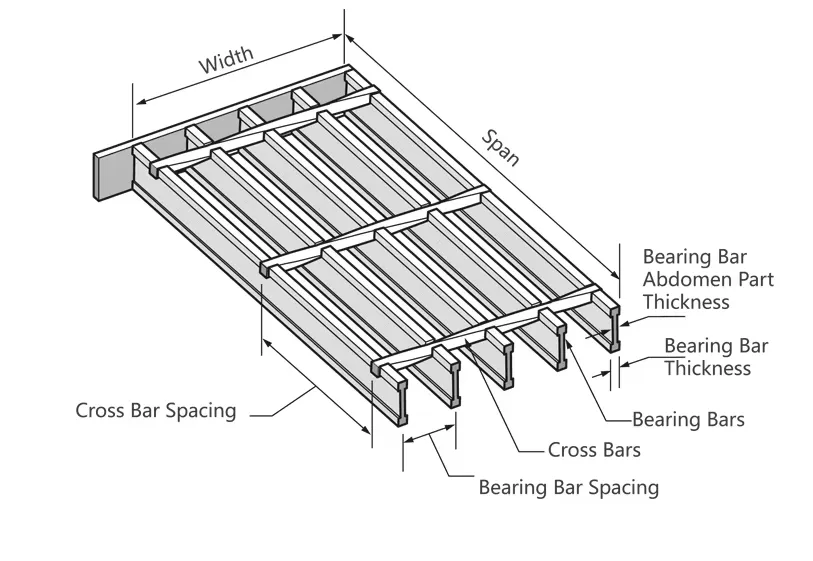

6. General Parameter

Bearing Bar pitch(mm)	15,22,25,30,32.5,34,40,50,60,80,90 mm. The pitch of 25,30,34 and 40 are recommended.
Bearing Bar Thickness(mm)	3-16mm
Bearing Bar Width(mm)	10-150mm
Cross bar pitch(mm)	24-200 mm. The pitch of 50,76, 100 are recommended.
Bearing bar type	Plain, Serrated, I-section.
Surface treatment	Hot galvanized, Painted, Untreated.
Material	Stainless Steel/ Low Carbon steel

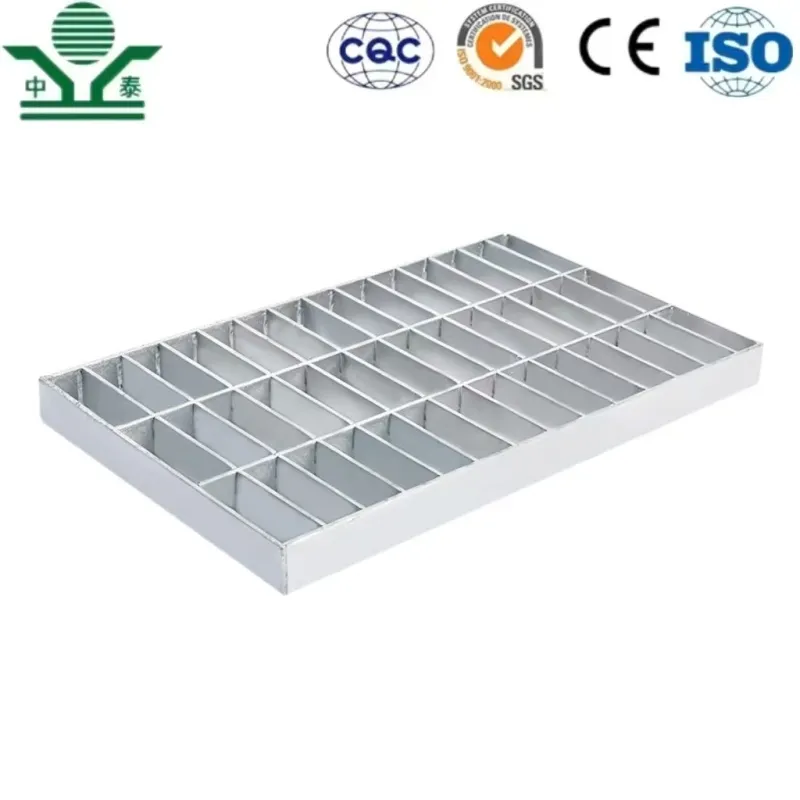

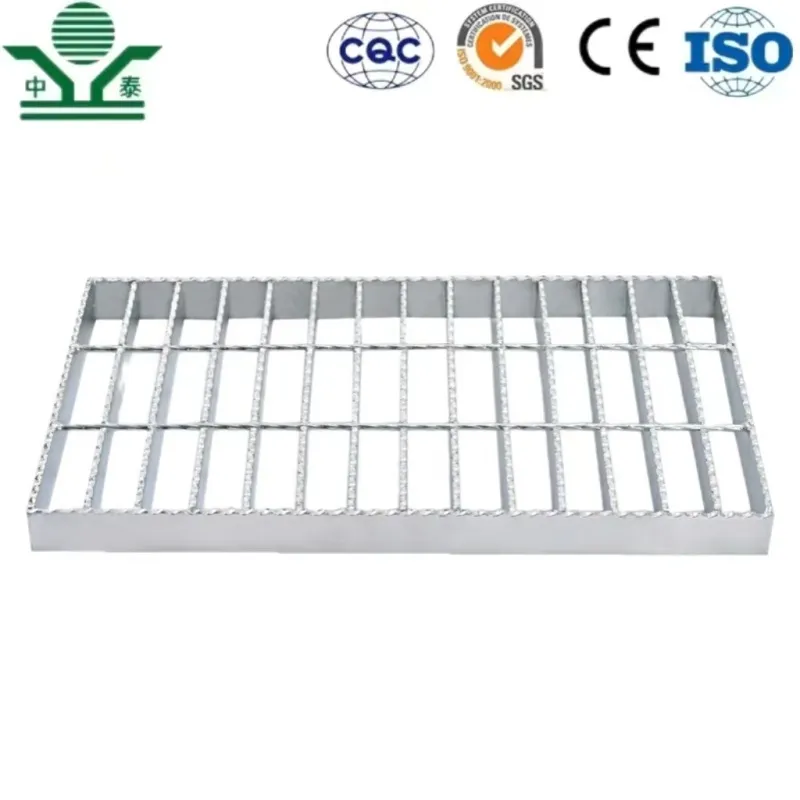

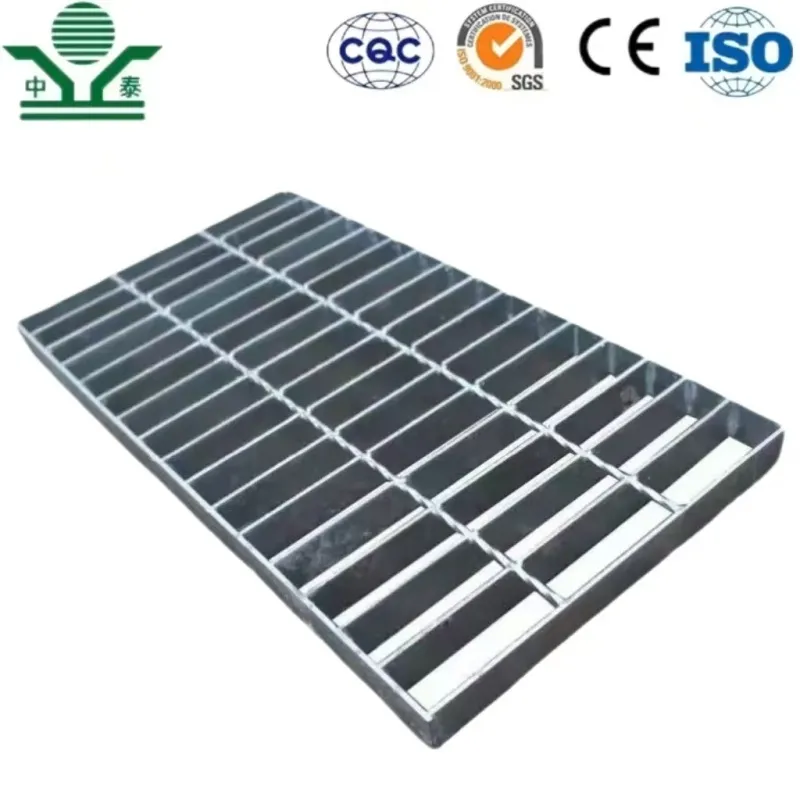

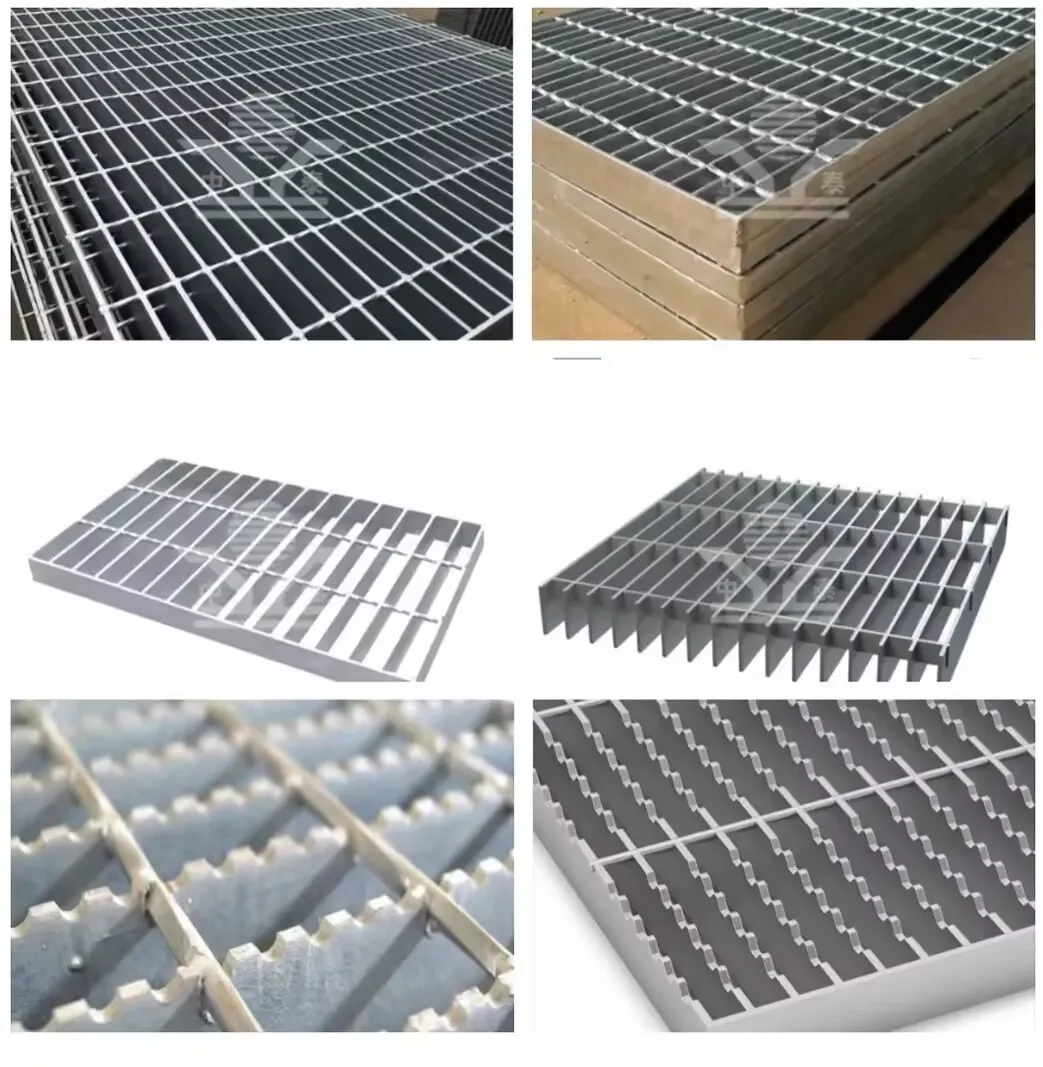

Detailed Photos:

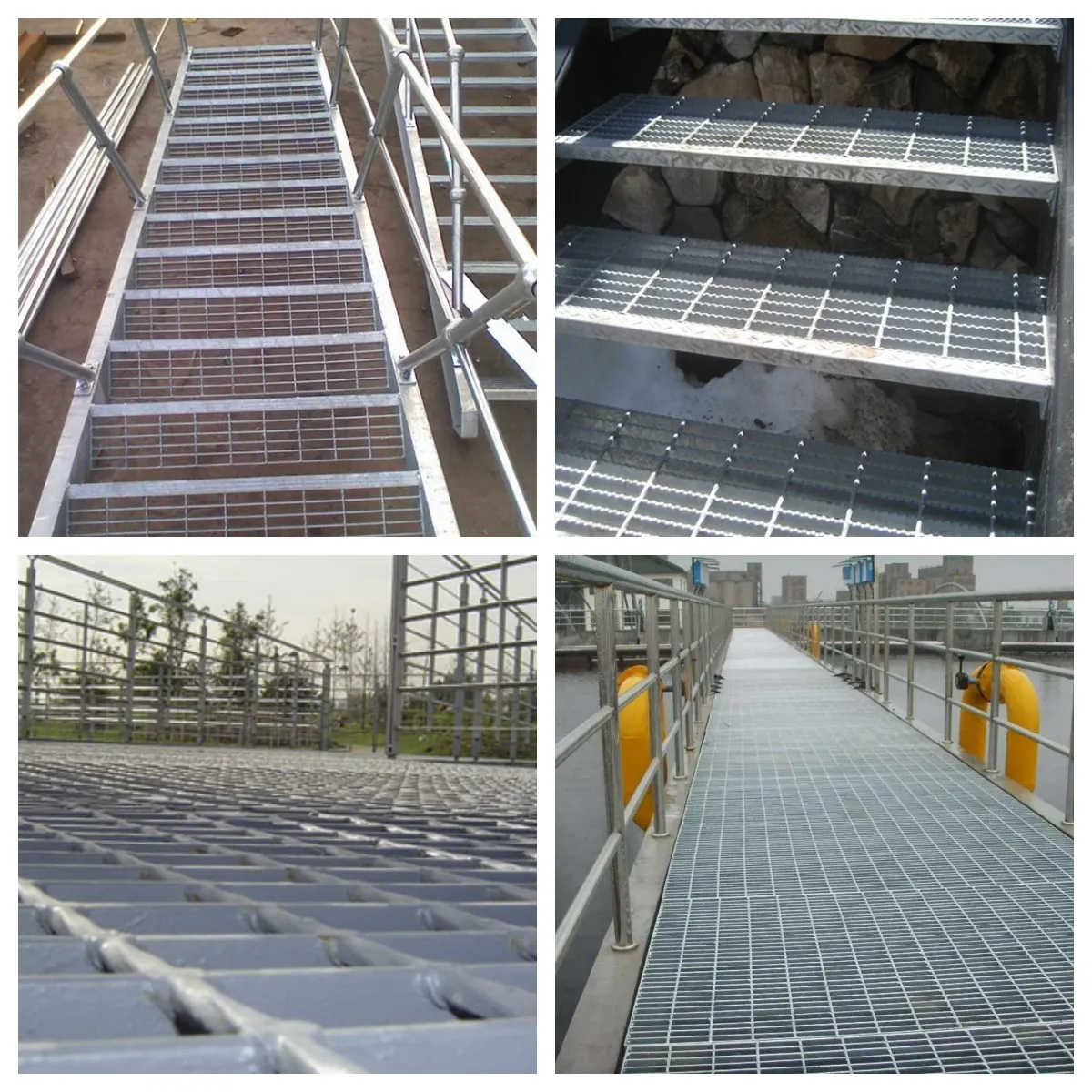

Application:

Company Profile:

Certifications:
