Product Description

Material: steel plate, galvanized plate, color coated sheet, stainless steel sheet.

Surface treatment: Electrostatic powder coating.

WIND DUST NET WORKING PRINCIPLE:

Wind dust net is widely used in many aspects, In agriculture, it is used to control the temperature of the plant. In desertification

area, it is used to reduce the sand to heap up, In environmental protection, it can reduce the disperse of the sand.

The sand, coal and lime which stored outside will be influenced by the environmental when the wind is stronger than gentle breeze, at present, the way to control the dust in our country: Covering and Sprinkling, both of the two would be cost time and ftime again, but the effect is not very good, and the sprinkling has the problem in winter. Only wind dust net can slove all the problems which they meet, not only the effect is good, and it can be used for many years for only first time cost, it is the best way to solve the dust problem.

According to the experiments of the open-air material pile of dust diffusion rules. The relatinship between the heaped dust.

According to the formula, Q--material mounded dust capacity; V_ wind speed, V0--wind speed of the dusting, A- -dust particle.

size distribution related cefficient, N-index(n> 1.2)

From the formula, we can see that it is proportional to high times between the material mounded dust quantity Q with the wind speed difference(v-v0). Therefore, the most effective methods to reduce the actual speed is to reduce the stacking dust capacity.

If you want to decrease the dust quantity Q, the main method is to reduce the difference between V and VO in value. The aim of the wind dust net is to decrease V, and the aim of the wet dust suppression is to make V0 bigger, as to achieve the common goal of reducing Q. Therefore, for outdoor material stockyard, using wind dust net or the wet dust suppression are two main methods of reducing dust capacity. The experiments has proved that the index n is about 2.7~ 6.23, Thus, the best way to reduce the dust of the coal in open area is to reduce the wind speed.

CHARACTERISTIC OF THE WIND DUST NET:

1 .The surface of the product after powder printed can absorb the ultraviolet of sunlight, and it can reduce the material oxidatio*ate. Make the product has beler aging-prevent performance and longer service life. At the same fime, the low transmitance cultraviolet sunlight can efficiently avoid the damage from the sunlight.

2. 2.The wind dust net have very good flame resistance due to metal made. lt can satisfy both the fire protection and safetrequirements.
3.
4. 3.High-strength wind dust net can withstand the hail (winds) impact. from the impact strength test in Lantau island, with th;ample ball of lkg, free fall from l.5m high, to impact our wind dust net. There is no fracture and penetration hole with ouproducts.
5.

4.The wind dust net surface with electrostatic pVC printed, can make the organic of the surface resolved and be easily washedby the rain.

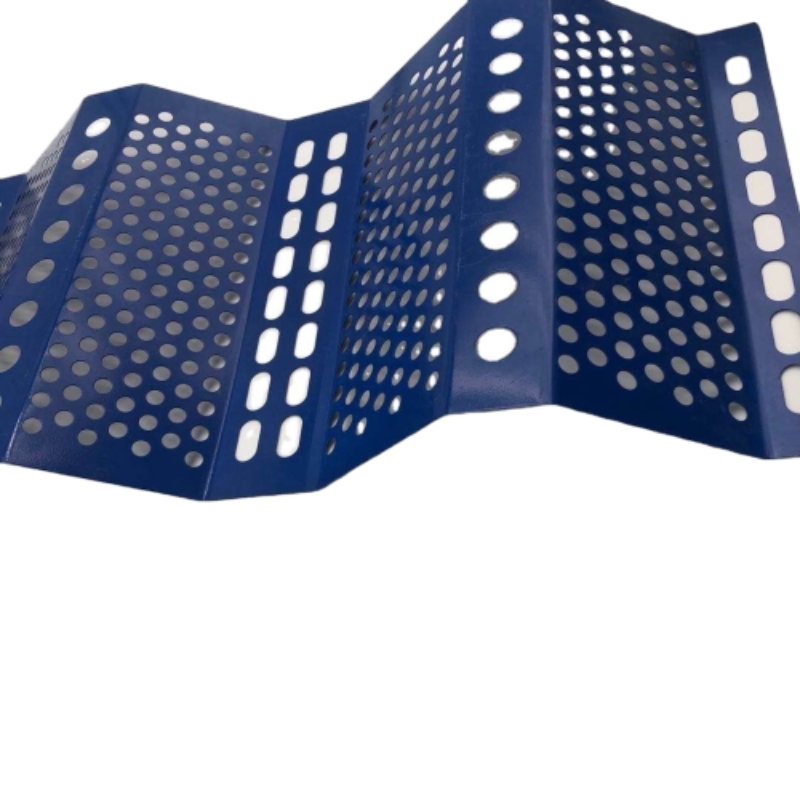

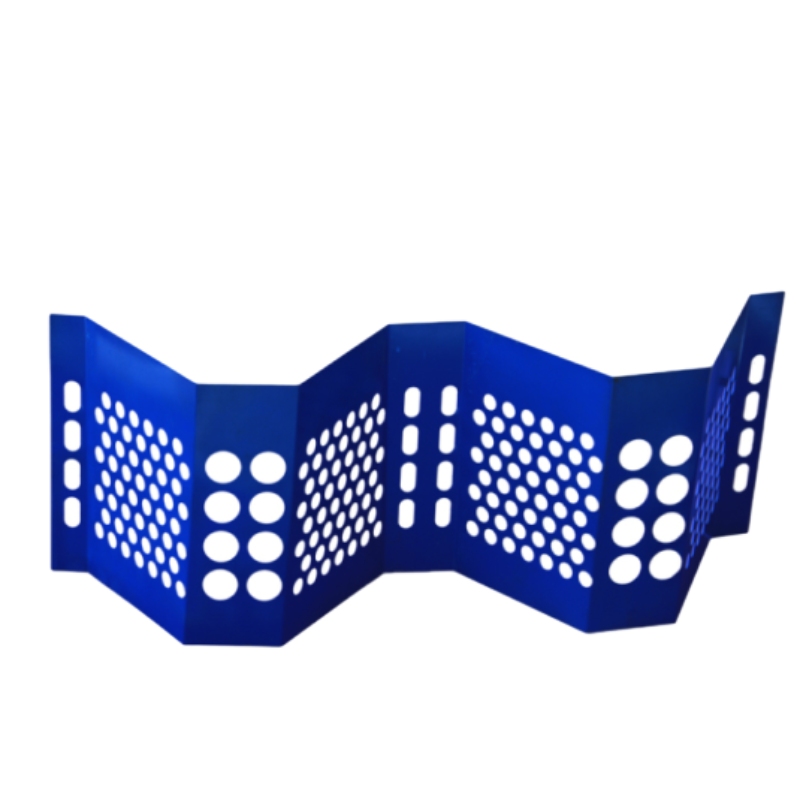

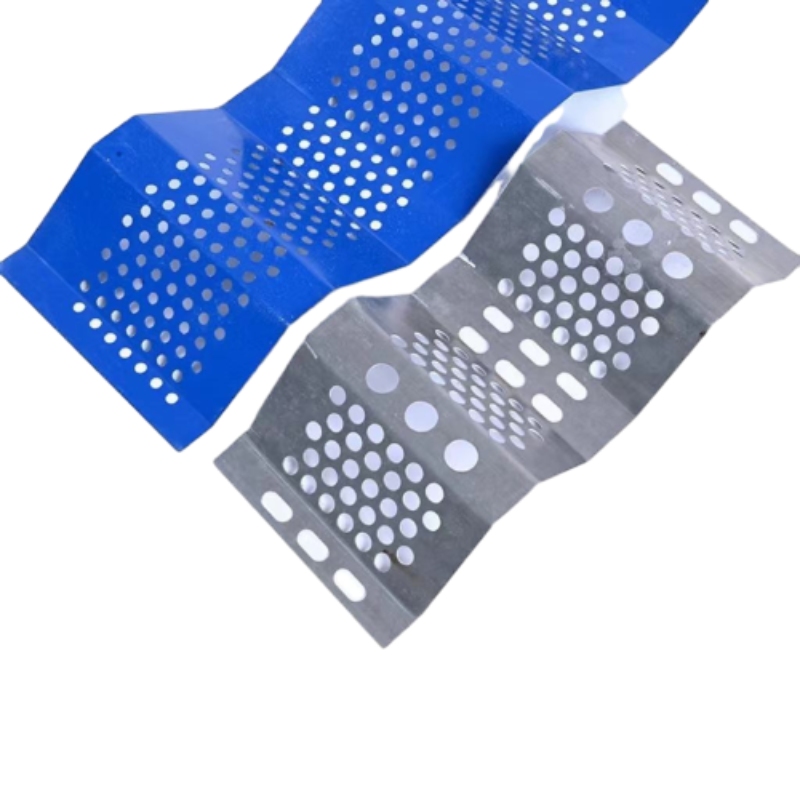

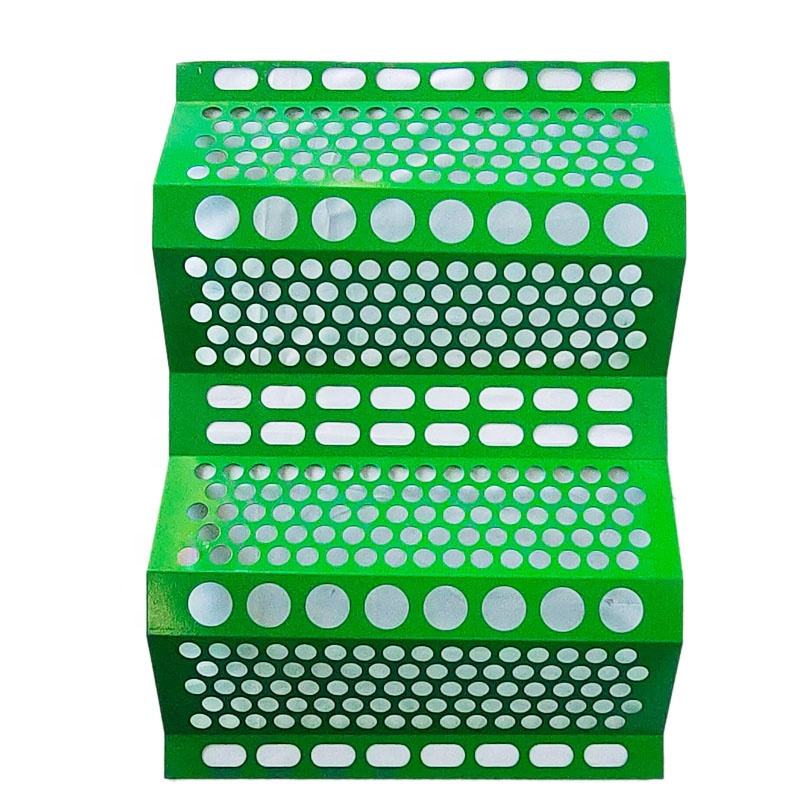

Detailed Photos
