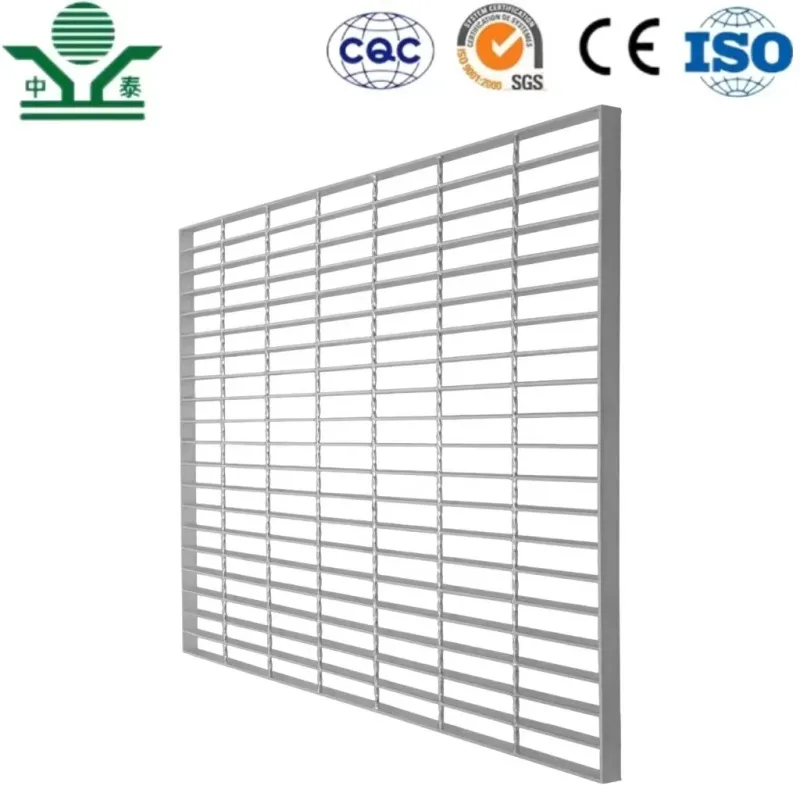

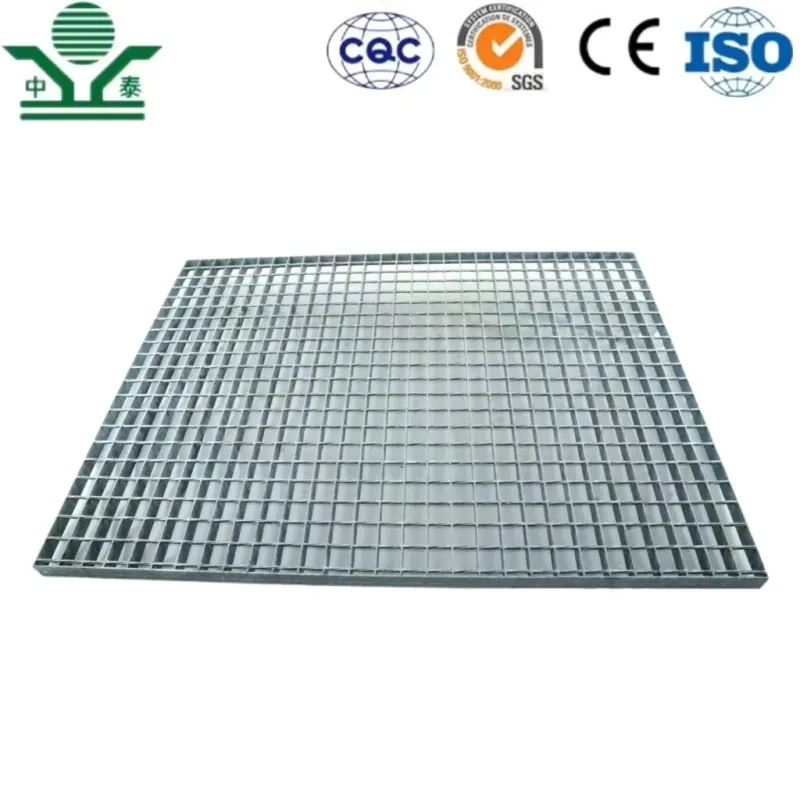

Hot Sale Platform Grating Heavy Duty G325/30/100 Steel Grating

Bearing Bar Pitch: 30mm Bearing Bar Width: 32mm Bearing Bar Thickness: 5mm Cross Bar Pitch: 100mm Material: Stainless Steel / Carbon Steel Surface Treatment: Galvanized

Send Email To Us Download To PDF

Product Detail

Product Tags

Hot Sale Platform Grating Heavy Duty G325/30/100 Steel Grating

Product Recommendation:

1. The grating with a pitch of 30mm between bearing bars is the most used type in the industrial field. Among normal types, it has the strongest resistance to surface lash.

2. The grating with a pitch of 40mm between bearing bars is the most economical and lightest type. It is the best choice for you on occasions when the span is small.

3. The grating with a pitch of 60mm between bearing bars and a pitch of 50mm between the cross bars is developed specially for mining industry, it solved the problem of mineral splash on the plate. So it is often appointed to use in processing works of mining industry.

4. The grating with the pitch of 30mm between bearing bars and the pitch of 76mm between cross bars is the most popular type used at home and abroad, it is proper for many applications such as walkways, platforms, etc.

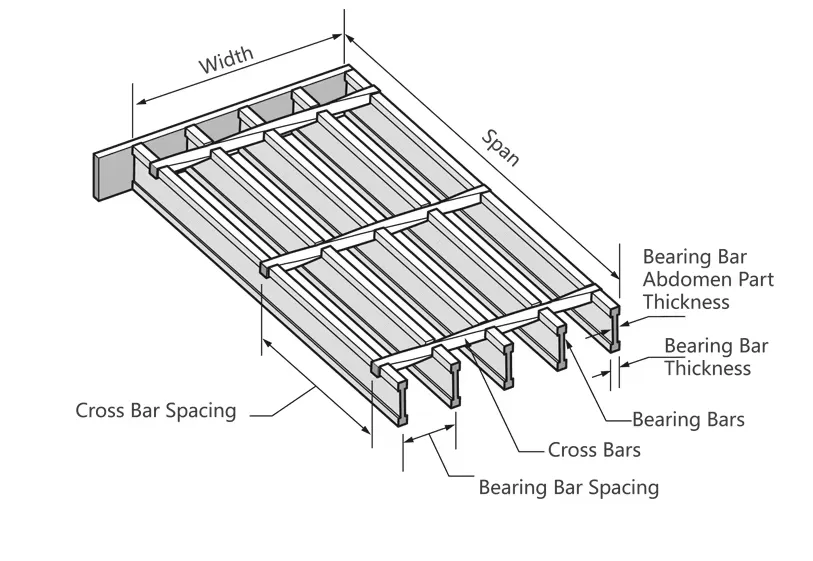

5. I-Section Type Bar

Read More About heavy duty steel grating

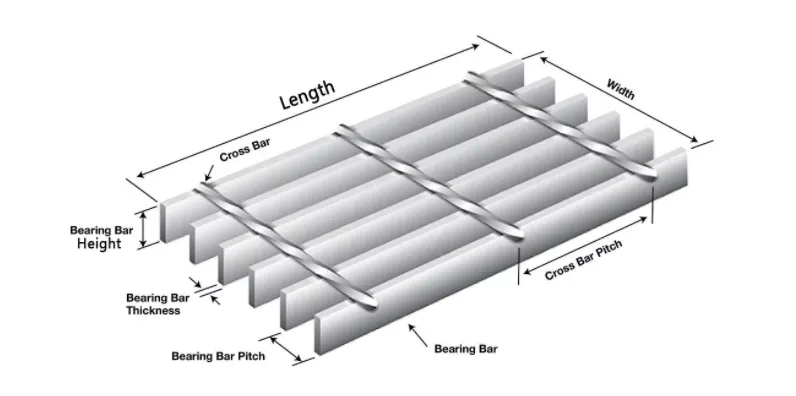

6. Plain Type Bar

Read More About galvanized catwalk grating

7. General Parameter

Bearing Bar pitch(mm)	15,22,25,30,32.5,34,40,50,60,80,90 mm. The pitch of 25,30,34 and 40 are recommended.
Bearing Bar Thickness(mm)	3-16mm
Bearing Bar Width(mm)	10-150mm
Cross bar pitch(mm)	24-200 mm. The pitch of 50,76, 100 are recommended.
Bearing bar type	Plain, Serrated, I-section.
Surface treatment	Hot galvanized, Painted, Untreated.
Material	Stainless Steel/ Low Carbon steel

8. The product can be customized as your requirement.

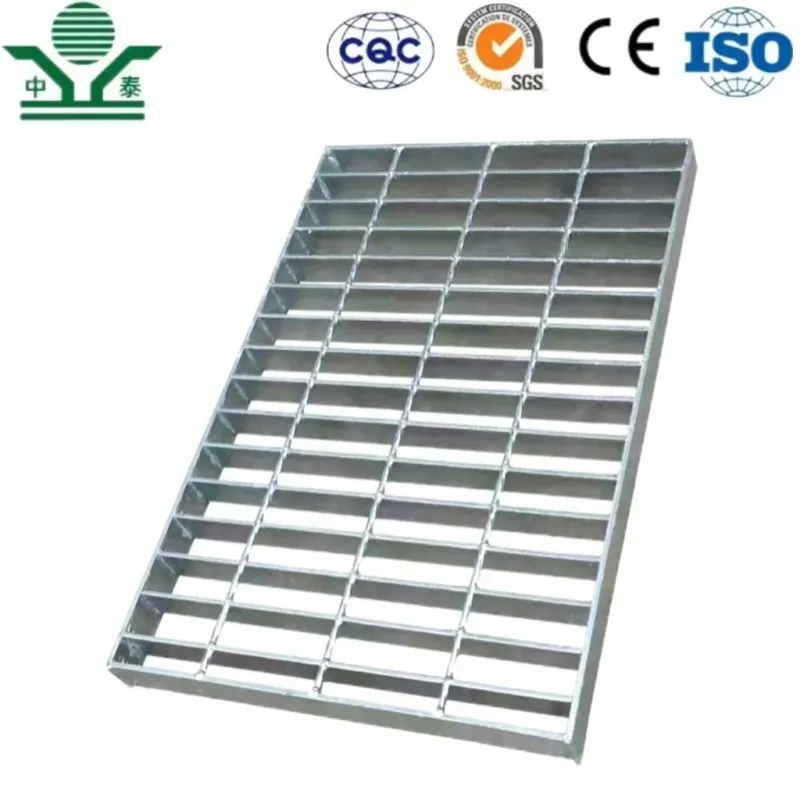

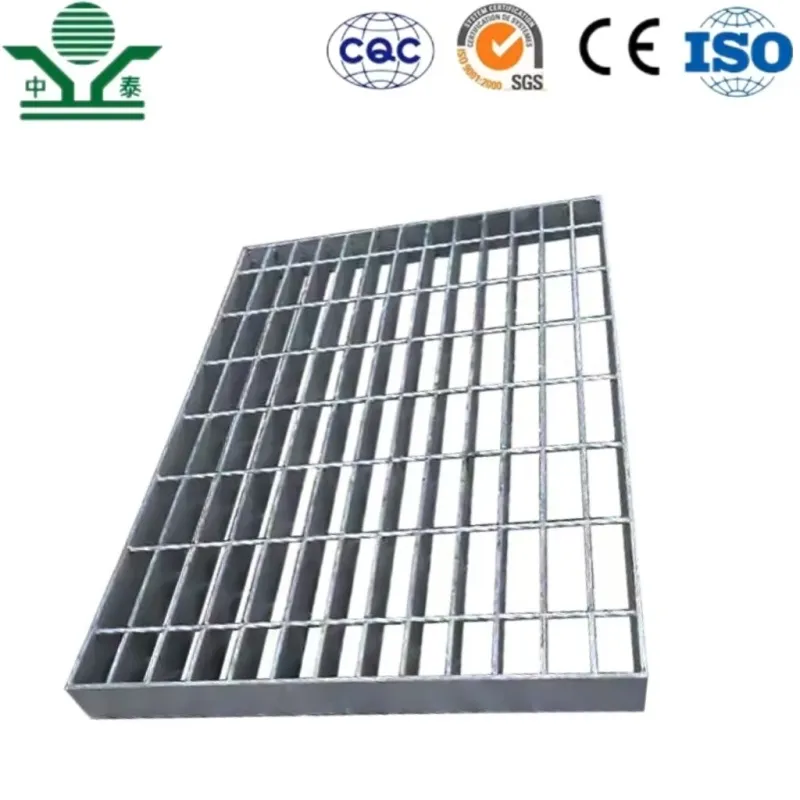

Details Photos:

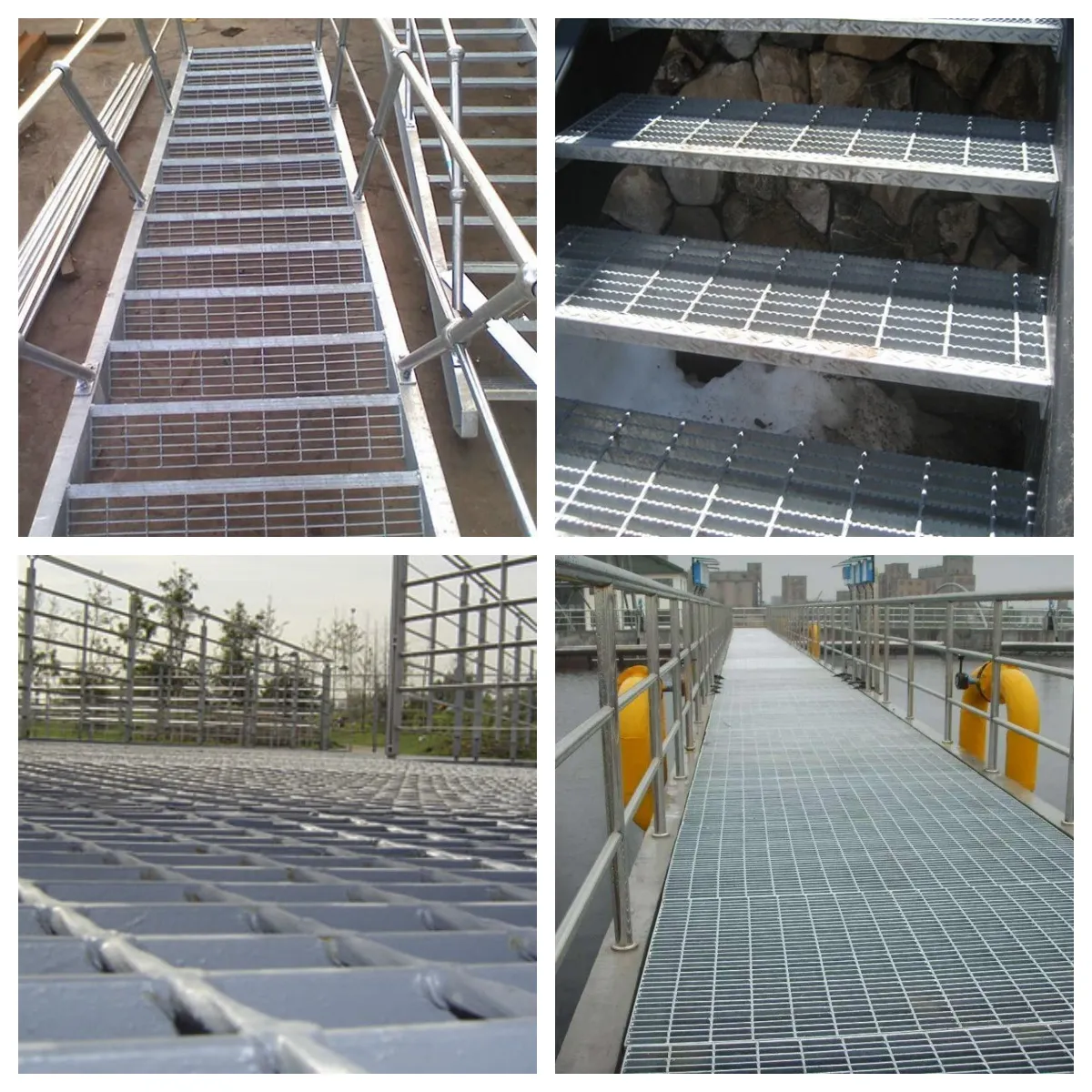

Application:

Certifications:
