Product Introduction

Hinge Joint Field Fence Has Four Wrap Knots Or Joints Formed With Two Vertical Stay Wires Wrapped Together That Give Under Pressure, Then Spring Back Into Shape. This Hinged Knot Provides Continuing Protection, Maximum Strength, And Flexibility Of The Entire Fence Fabric. Hinge Joint Fences are popularly Used In Farms, And Pastures in the USA, Canada, South Africa, And Australia As Field Fencing Materials. A Hinge Joint Fence Is Also Called A Hinge Knot Fence Or Hinge Lock Fence.

Application:

Hinge Joint Iron Fence Heavily Galvanized. Is Used For Grassland, Pastures, Protection Of Ecological Projects, Protecting Grassland, Forestry, Highway, And Other Sites.

Hinge Knots Forming:
Hinge Joint Fencing Is The Best Choice For Ranchers For Protecting Jumping Animals Like Deer, Horses Cows, Sheep And Goats. The Hinge-Knot System Ensures Proper Stretching And Allows For Easier Installation Over Hilly Or Rough Terrain. Uses Of Our Hinge-Joint Knots Allow The Fence To Give Under Pressure And Spring Back Into Shape. The Heavy Zinc Coating Of The Wire Offers The Finished Fencing Good Rust Resistance And Corrosion.

Common Hinged Joint Fencing Is Made From Galvanized Wire With A Wire Diameter Of 2.5 Mm And The Top And Bottom Wire Are Made With A Wire Diameter Of 2.8 Mm. Fence Height Is Normally From 0.8M To 2M. A Variety Of Heights, Hole Mesh, Spacing, And Styles Are Offered For More Choices.

Material: Steel Wire With High Strength, With Zinc Coating Layer And Without.

Features:
Hinge Joint Fence Is Simple In Structure, Easy To Maintain, Has A Short Installation Period, Less Weight, Is Easy To Transport, And Has Easy Ventilation.

Products Details

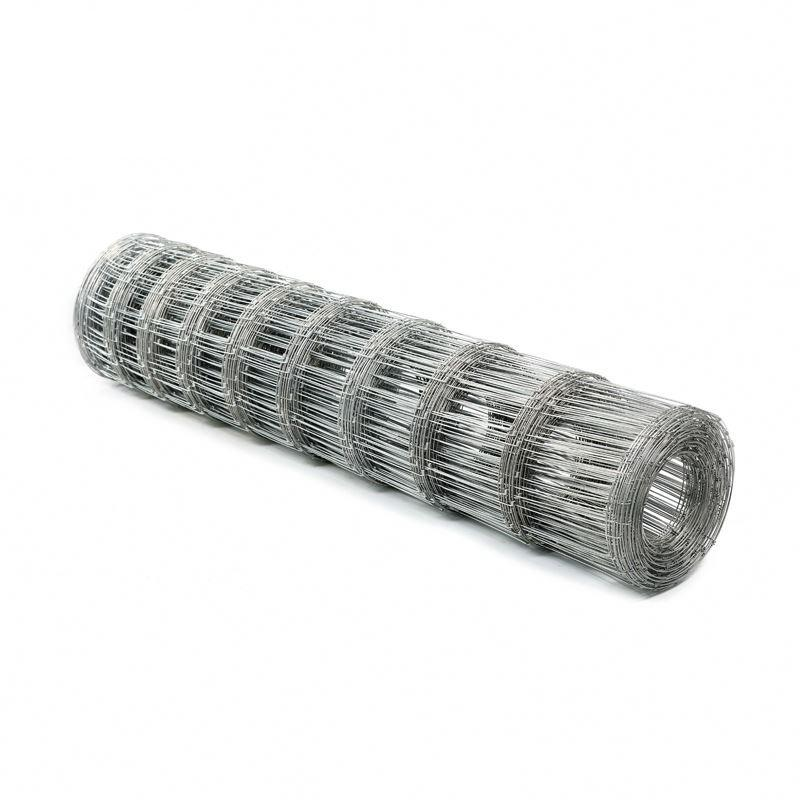

Hinge Knot Field Fence.
Fence Wire High Tensile Steel Galvanized - 12.5 ga.
In 330' Rolls.
Available in heights ranging from 32" to 78"
84" Hinge Joint Fence Wire to South Africa.
Fully galvanised.
Joints to be hinged.
Height 2.13m.
Fence height: 84 feet.
Vertical stay spacing 150mm (6").
Horizontal line wires 22.

Wire Specifications
Horizontal line wires 2,00mm diameter high tensile steel wire at 415kg breaking strain.
Vertical stay wires 2,00mm diameter, mild steel at 220kg breaking strain.
Hinge Knot Field Fence.
Fence Wire High Tensile Steel Galvanized - 12.5 ga.
In 330' Rolls.
Available in heights ranging from 32" to 78".

Wire Specifications
Horizontal line wires 2,00mm diameter high tensile steel wire at 415kg breaking strain
Vertical stay wires 2,00mm diameter, mild steel at 220kg breaking strain
Hinge Knot Field Fence.
Fence Wire High Tensile Steel Galvanized - 12.5 ga.
In 330' Rolls.
Available in heights ranging from 32" to 78".

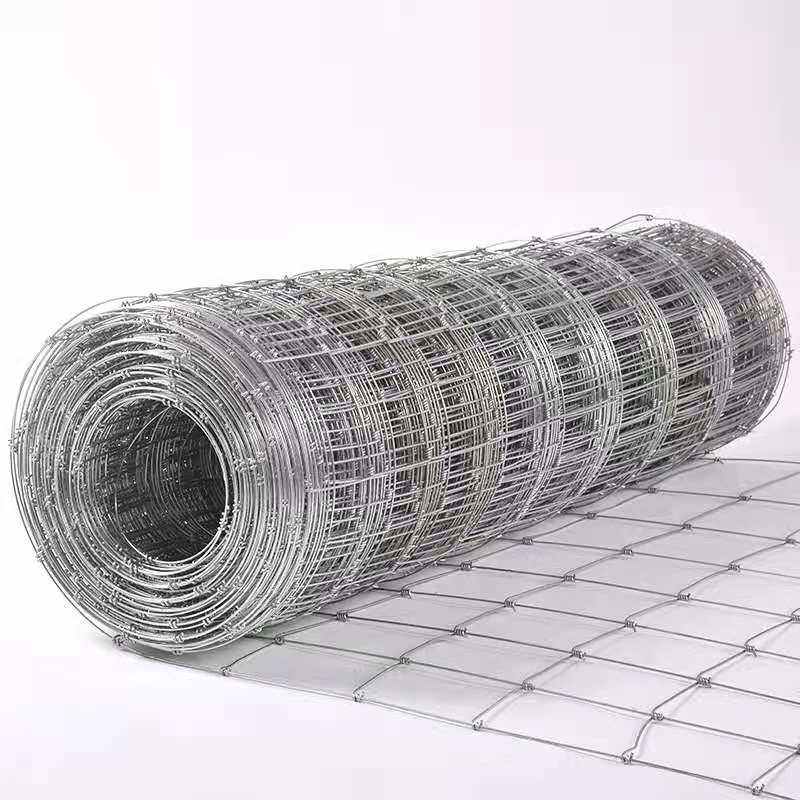

Woven Galvanized Field Wire with Hinged Knots at Joints.

Fence rolls: 32 inch x 330 feet.

Graduated with six horizontal wires spaced 5"+ 5.5"+ 6"+ 7"+ 8".

Top and bottom wire 12ga (2.03mm), filler wires 14ga. (1.8mm).

All vertical wires spacing 6".
Structure: Hinged knots joints.
4' Height Farm and Ranch Fence for Goats.
Rolls of the net fence, in 330 ft. rolls, 4 feet tall.
Farm and ranch fence to keep sheep/goats.

Woven Galvanized Field Wire with Hinged Knots at Joints.

Fence rolls: 32 inch x 330 feet.

Graduated with six horizontal wires spaced 5"+ 5.5"+ 6"+ 7"+ 8".

Top and bottom wire 12ga (2.03mm), filler wires 14ga. (1.8mm)

All vertical wires spacing 6"
Structure: Hinged knots joints.
4' Height Farm and Ranch Fence for Goats
Rolls of the net fence, in 330 ft. rolls, 4 feet tall
Farm and ranch fence to keep sheep/goats


Heavy Bull Wire Field Fence

Heavy Bull Wire/Field Fence/Hinged Knot

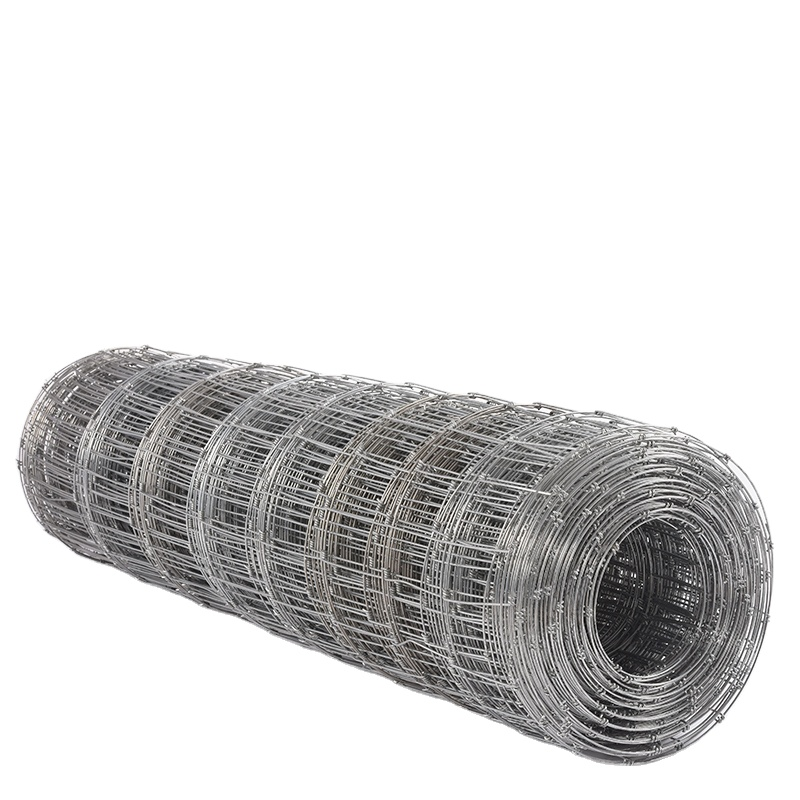

1047-6 Hinged Knot Field Fence
Low Carbon 9 x 11 gauge Class-III
47" height x 330' roll
10 horizontal wires x 6" stay spacing
1047-6 Hinged Knot Field Fence
Low Carbon 9 x 9 gauge Class-III
47" height x 330' roll
10 horizontal wires x 6" stay spacing
Finish: Hot-dipped galvanized

Heavy Bull Wire Field Fence

Heavy Bull Wire/Field Fence/Hinged Knot
1047-6 Hinged Knot Field Fence
Low Carbon 9 x 11 gauge Class-III
47" height x 330' roll
10 horizontal wires x 6" stay spacing
1047-6 Hinged Knot Field Fence
Low Carbon 9 x 9 gauge Class-III
47" height x 330' roll
10 horizontal wires x 6" stay spacing
Finish: Hot-dipped galvanized

Product Parameters

Regular Specifications of Hinge Joint Fencing:

Detailed Photos
